Cash Drawer Setup Guide

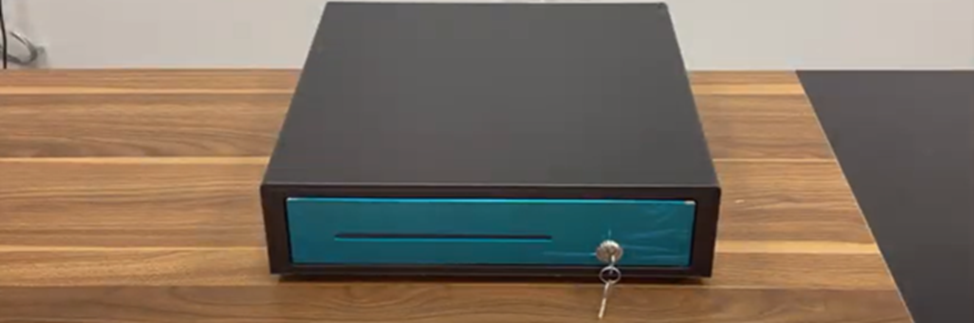

1. Unbox the Cash drawer and place it on a flat surface.

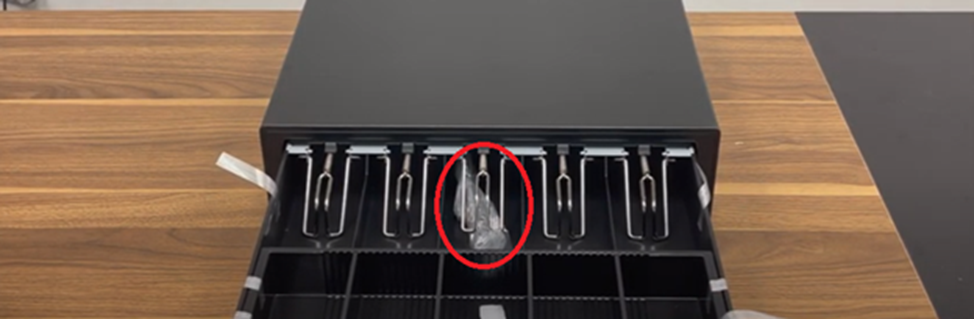

2. Open the cash drawer and locate the cable inside. Cash drawer gets connected to the receipt

printer using the cable included.

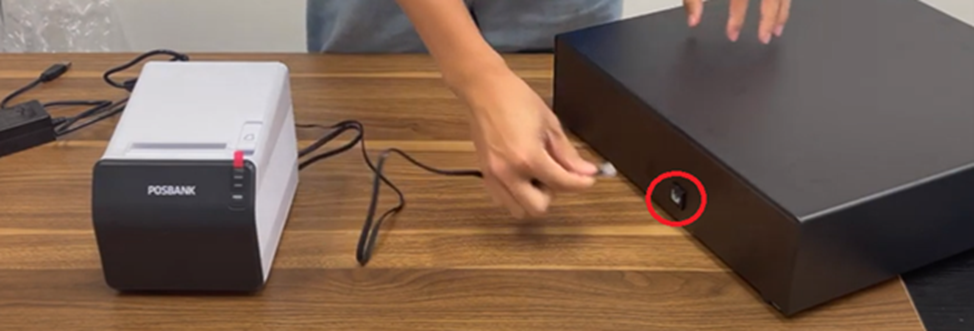

3. Connect one end of the cable to the cash drawer.

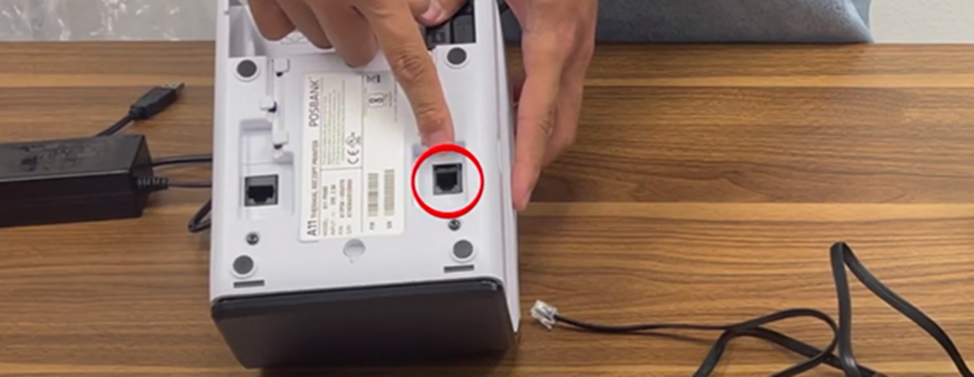

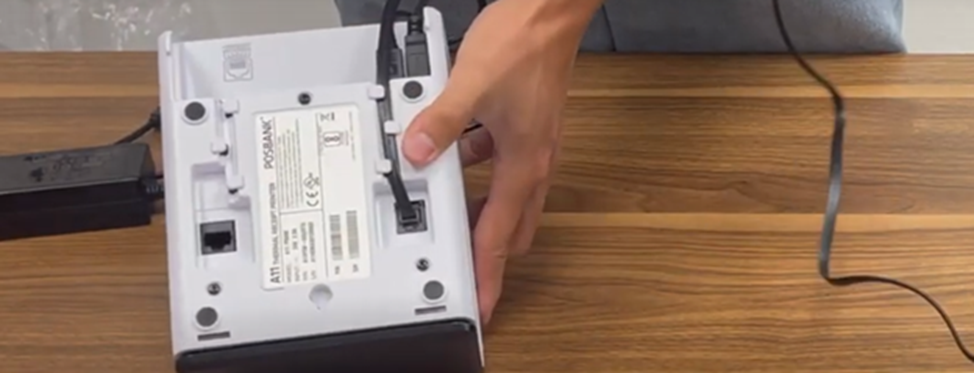

4. Connect the other end of the cable to receipt printer’s cash drawer cable socket, which is located at the bottom of the printer.

Most of the printer will have label either Cash Drawer or DK written.
