LINK Kiosk - Ordering Page setup guide

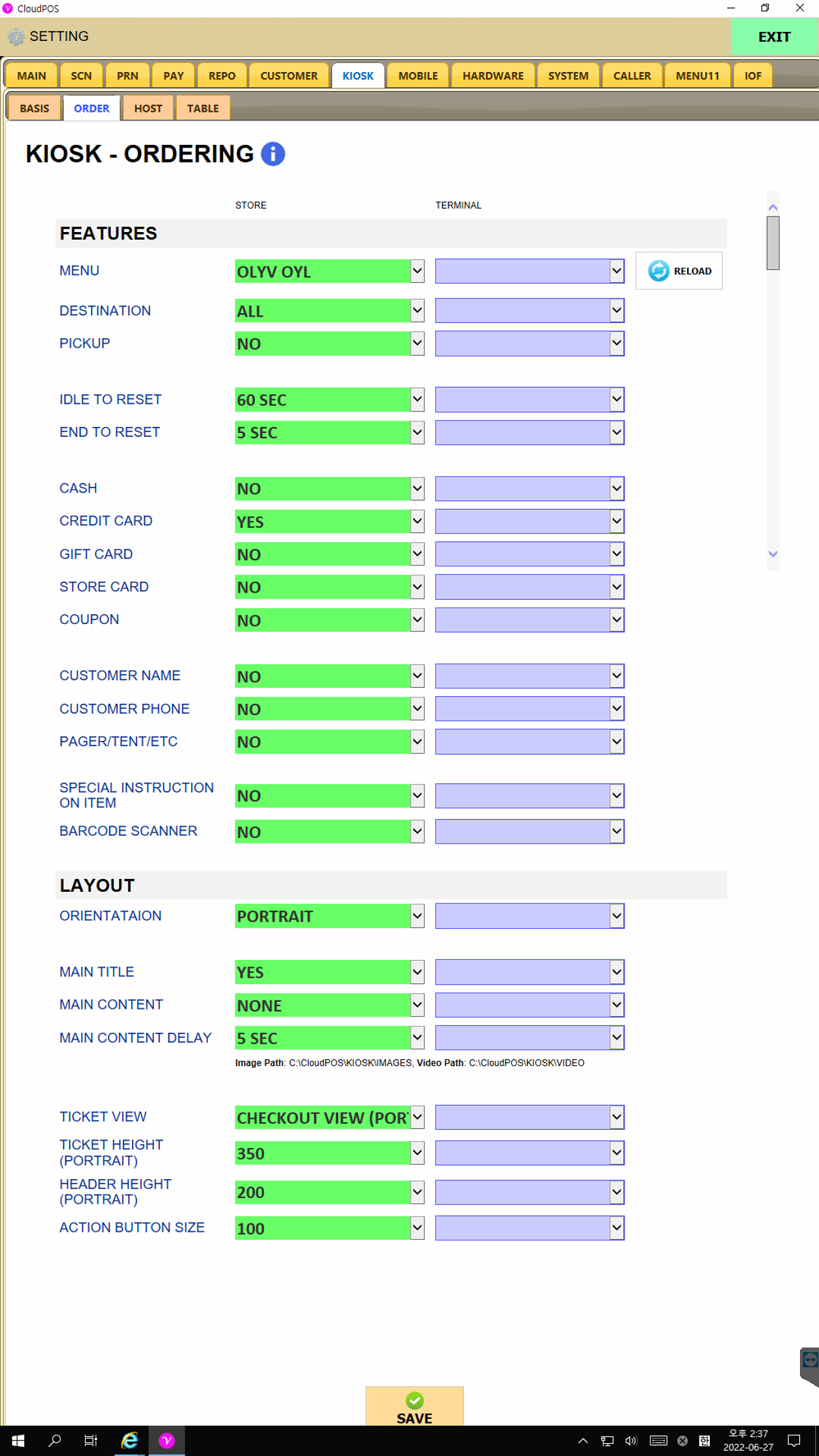

Setting > Kiosk > Order



Features



Menu: Assigns Which Menu Will Be Showed On Kiosk Ordering Screen.

Destination:

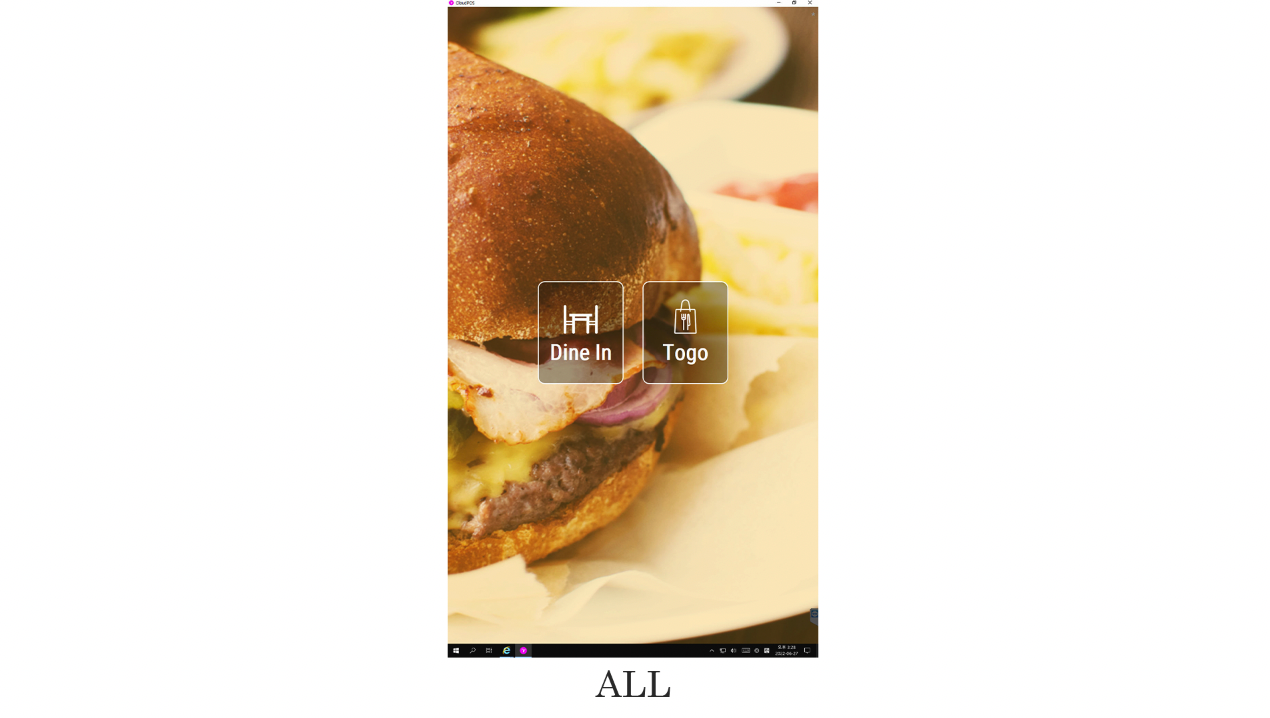

  • ALL - Gives option for customer to choose between Dine In and To go

  • DINE-IN - Orders placed through Kiosk will be sent as Dine-In only.

  • TAKE-OUT - Orders placed through Kiosk will be sent as To-Go Only.

When set to ALL, dine-in/to-go choice screen will be shown after "Touch to Order" screen.

PICK UP:

IDLE TO RESET: Time to reset to start page after X seconds of inactivity on any screen.

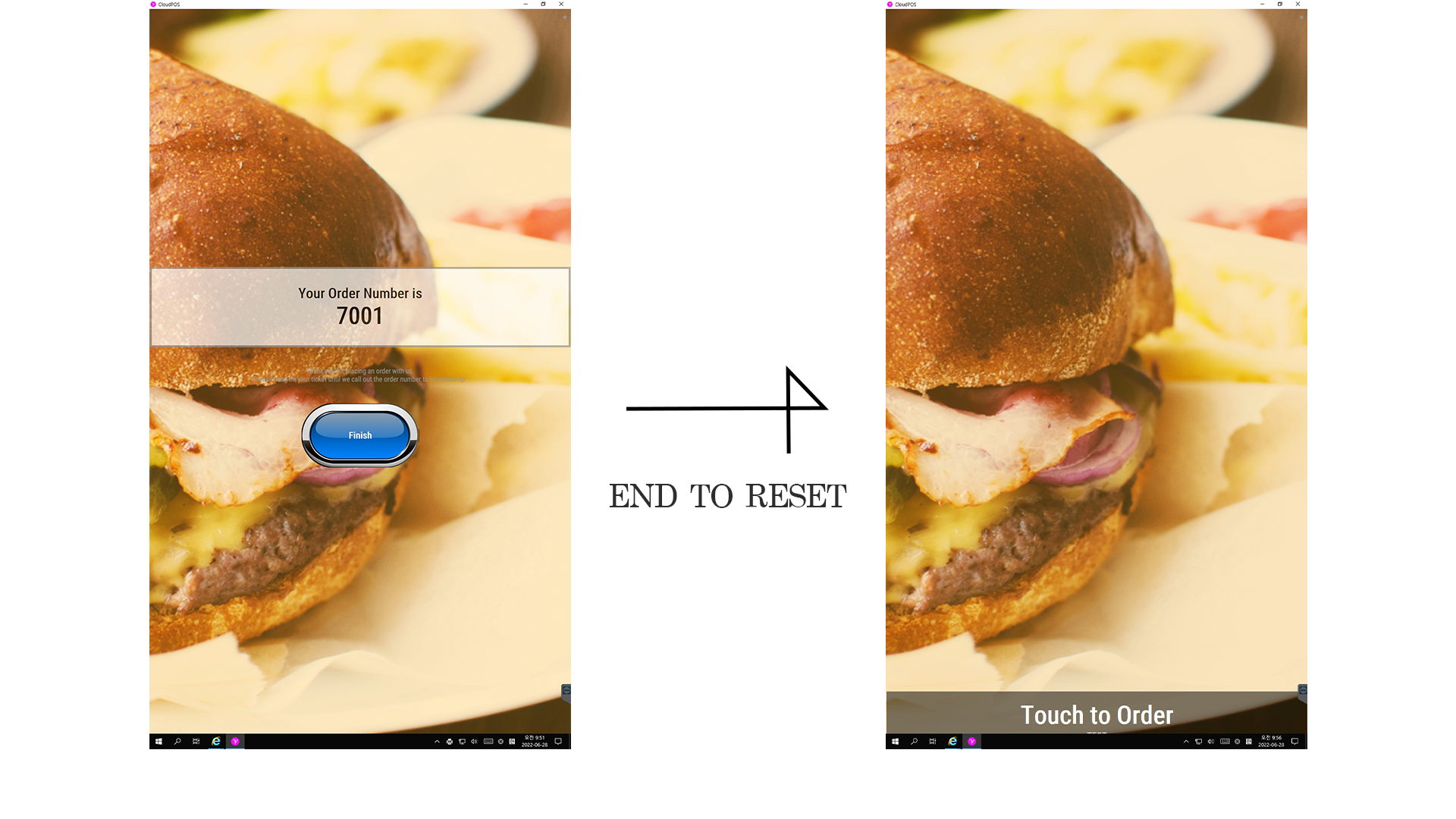

END TO RESET: Time to reset to start page after payment completion page shown below.

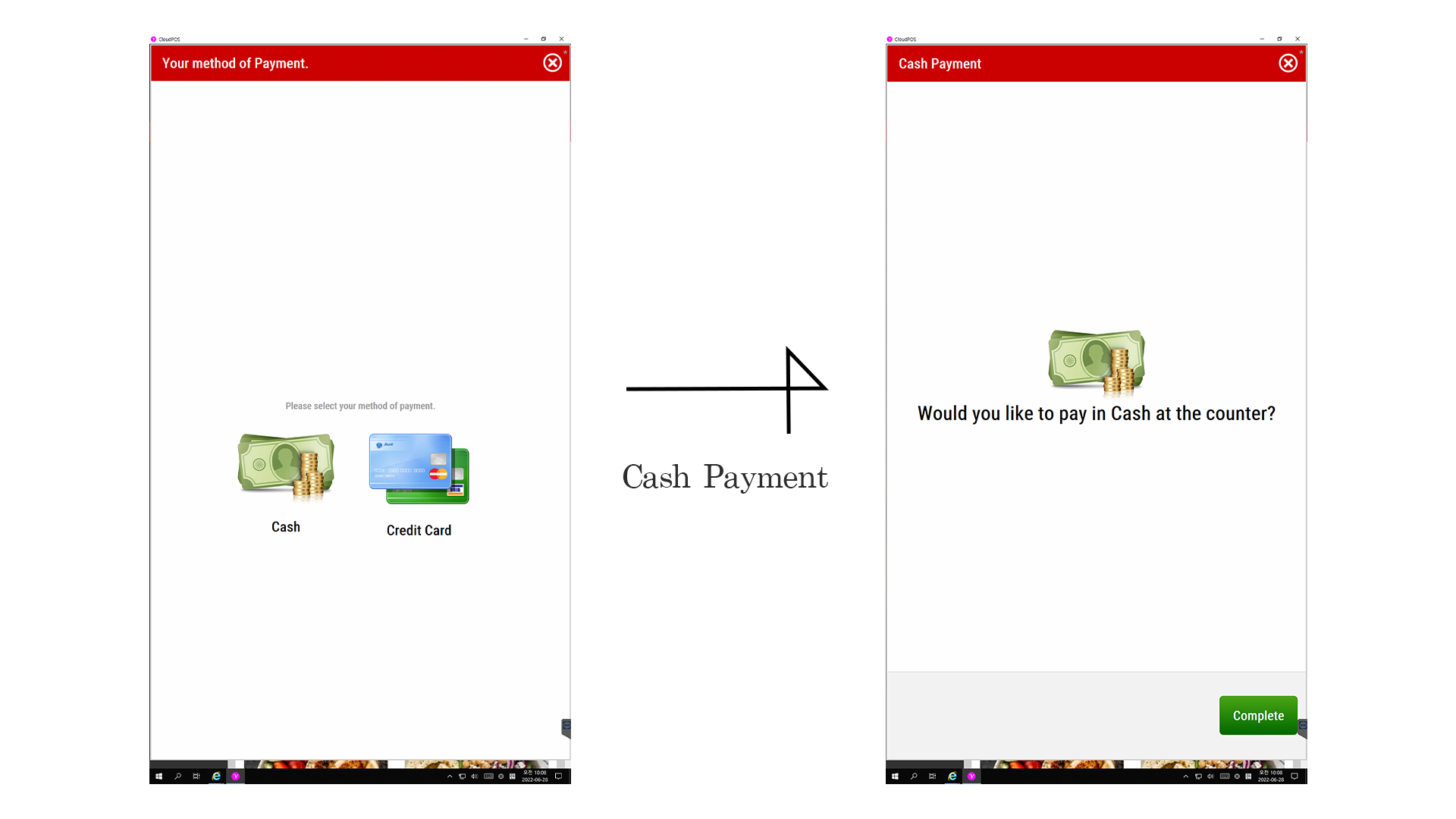

CASH:

  • YES - Enables CASH payment option which customer has to walk up to cashier after placing order on Kiosk.

  • NO - disables CASH payment option and cash icon will be dimmed.

CREDIT CARD: Whether to accept credit card payment or no

GIFT CARD: Whether to accept gift card payment or no

STORE CARD:Whether to accept store card payment or no

For the difference between gift card and store card, please refer to this page : https://kb.vela1.com/verona-how-to-buildup-the-store-card/

COUPON: Whether to accept coupon discount or no

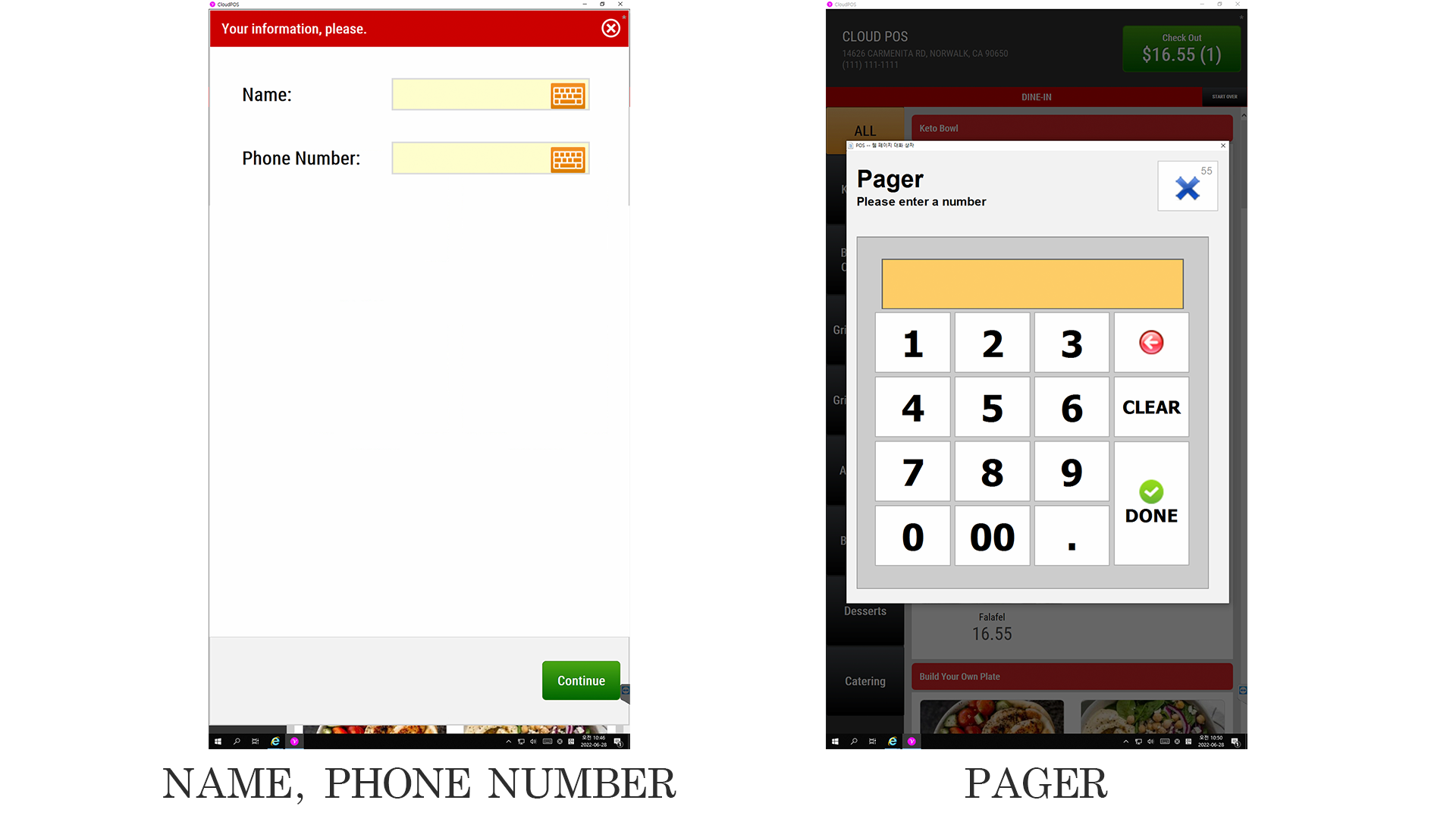

CUSTOMER NAME: Customer can note their name on the order. The name will be displayed on receipt and kitchen printer.

PHONE NUMBER: Customer can note their phone number on the order. The phone number will be displayed on receipt and kitchen printer.

PAGER/TENT/ETC: Customer can note pager/tent/table number on the order.

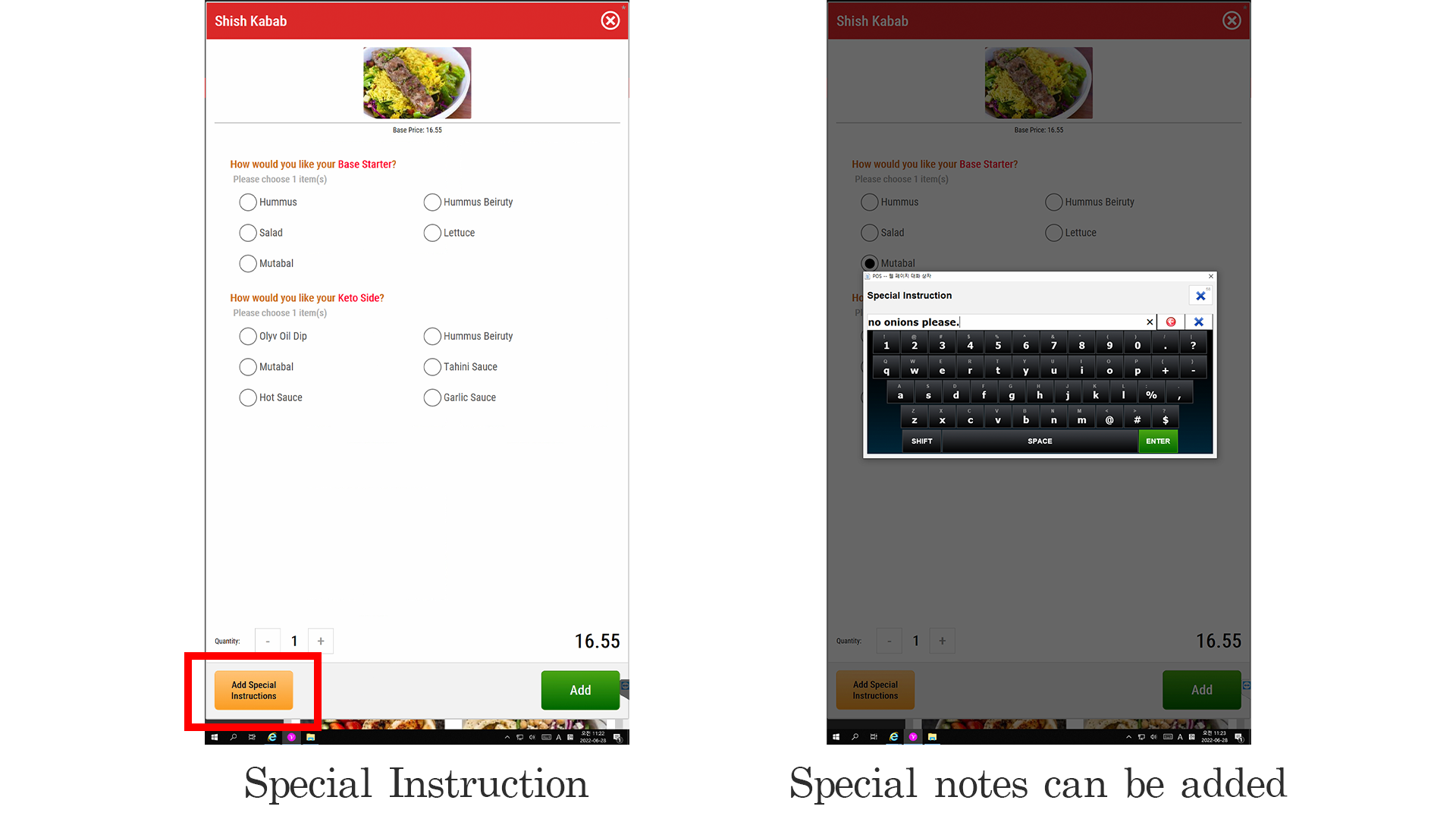

SPECIAL INSTRUCTION ON ITEM: Notes can be added to the order item. It will be shown on kitchen print.



BARCODE SCANNER:

LAYOUT

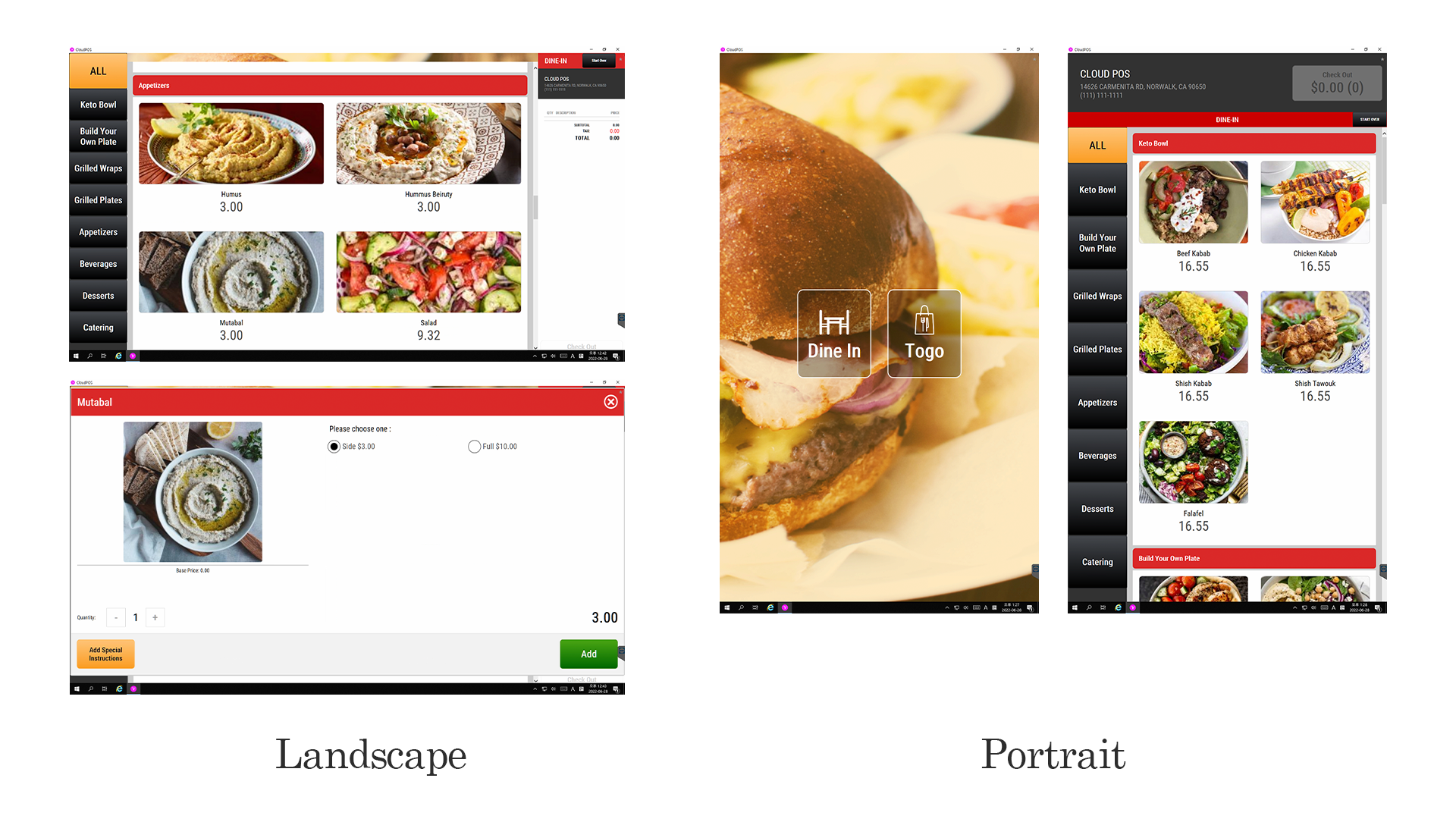

ORIENTATION: Changes UI layout accordingly to screen ratio.

  • Auto - detects screen ratio and orientation to automatically set orientation setting

  • Landscape - Set to landscape if the Kiosk is horizontal. (height < width)

  • Portrait - Set to portrait if the Kiosk is vertical. (height > width)

MAIN TITLE: By setting this, restaurant name can be displayed on top of start screen.

MAIN CONTENT: Start screen background image/video can be set.

  • IMAGES - images can be displayed on the main screen. You can put multiple images into the path directory folder and the kiosk will display images in slideshow.

  • VIDEO - video also can be displayed on the main screen. You can also put multiple videos into the path directory folder and kiosk will display videos consecutively.

MAIN CONTENT DELAY: It is the interval time setting for each image to be displayed. If set to 5 SEC, the background image will change in every 5 seconds.

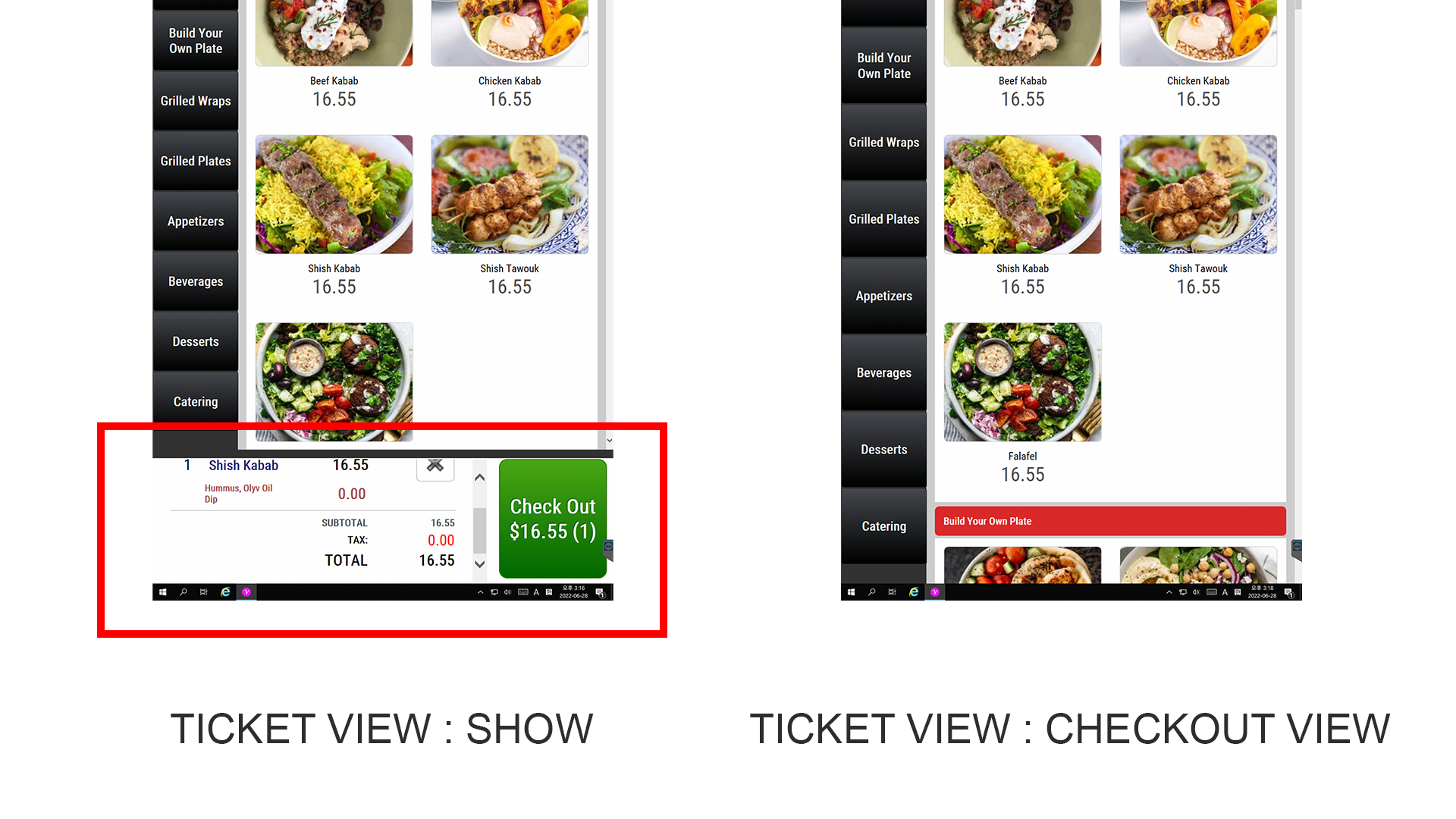

TICKET VIEW: Display Ticket at the bottom of the screen.

  • SHOW - Always show tickets on the bottom

  • CHECKOUT VIEW - show ticket at the end on checkout page



TICKET HEIGHT: Set height of ticket view on the bottom in pixels.

HEADER HEIGHT: Set height of header on the top of screen.

ACTION BUTTON SIZE: Set size of action button at the bottom of order screen.

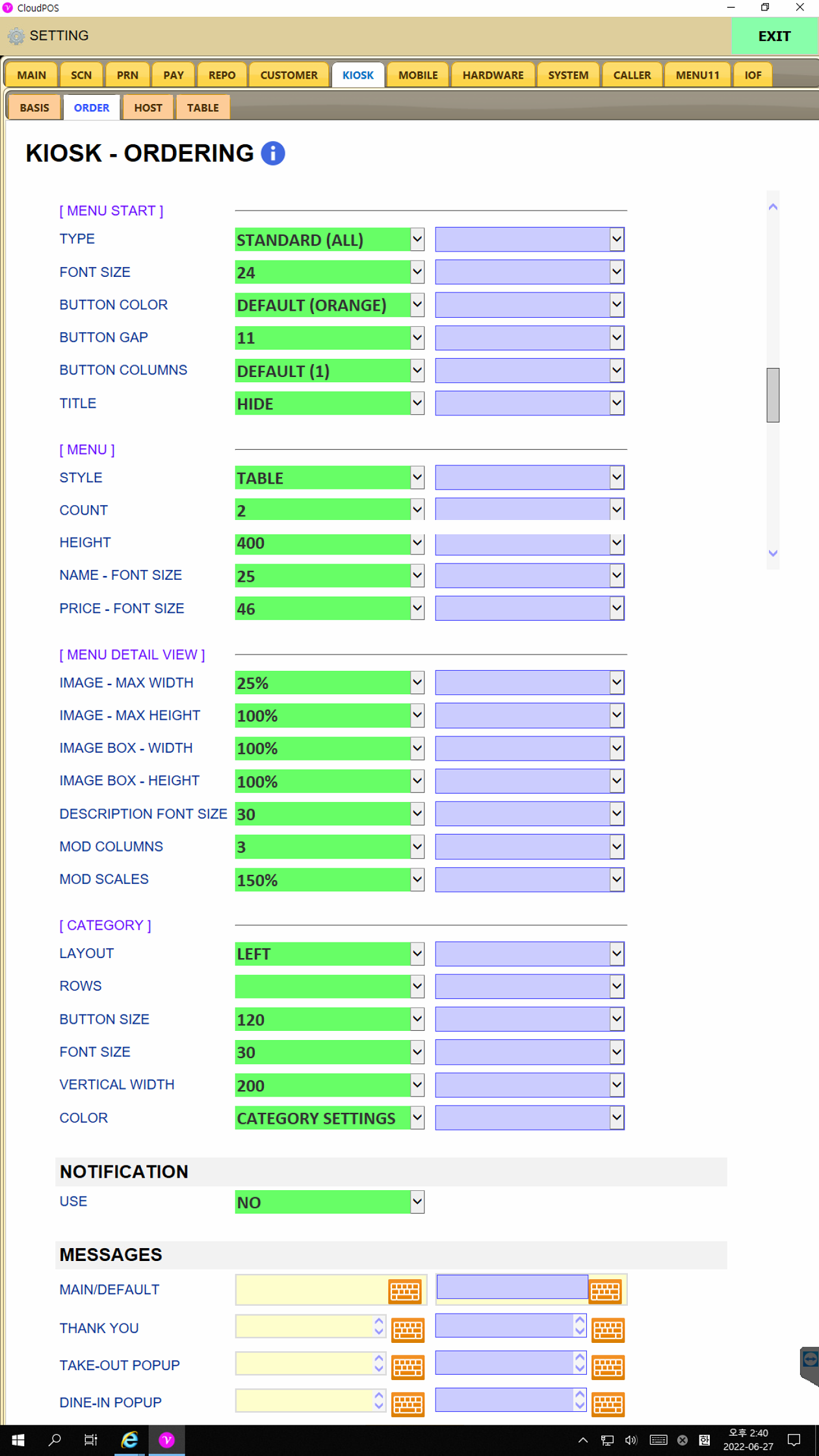

[MENU START]



TYPE :

FONT SIZE :

BUTTON COLOR :

BUTTON GAP :

BUTTON COLUMNS :

TITLE :



[MENU]

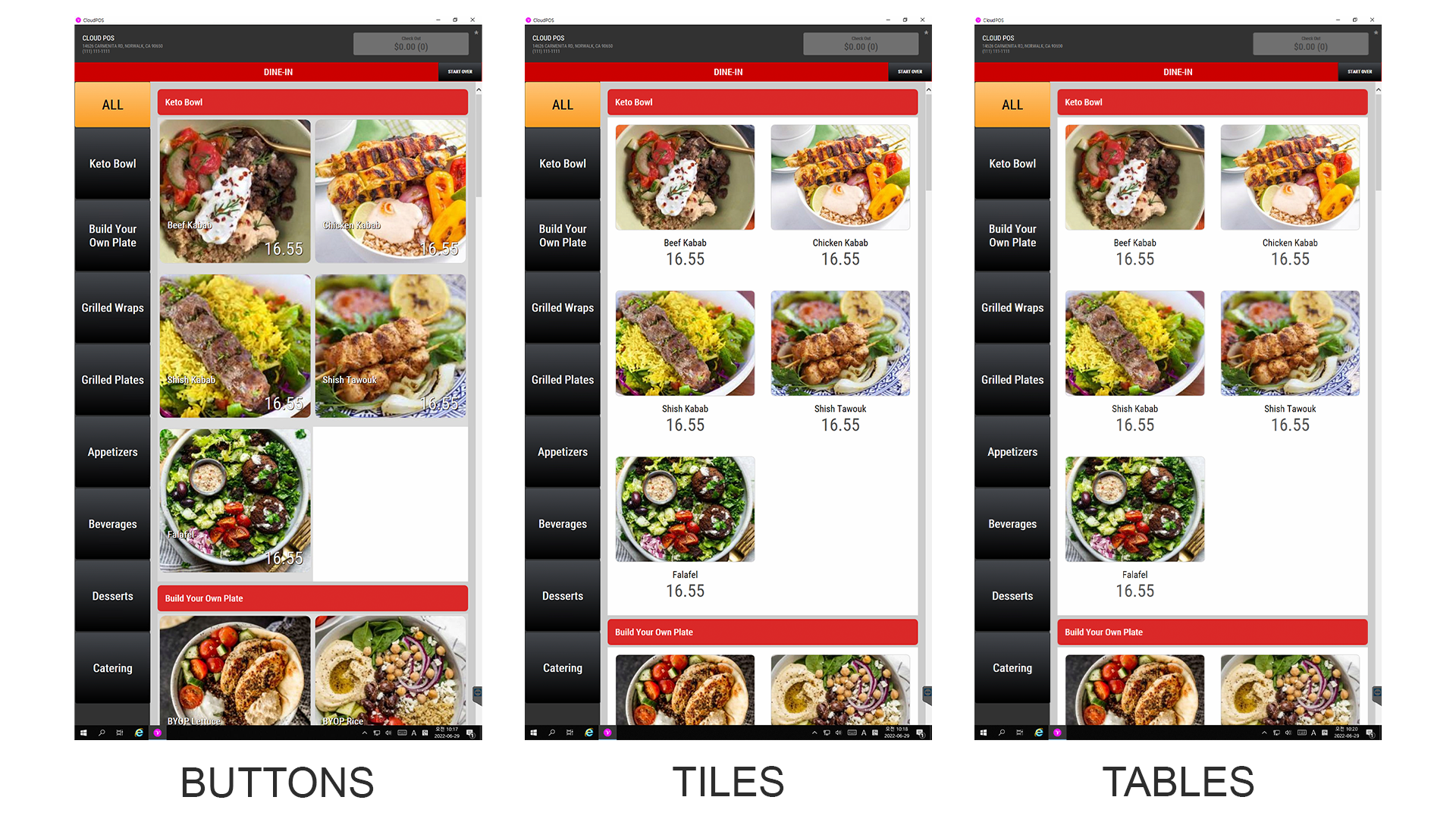

STYLE :

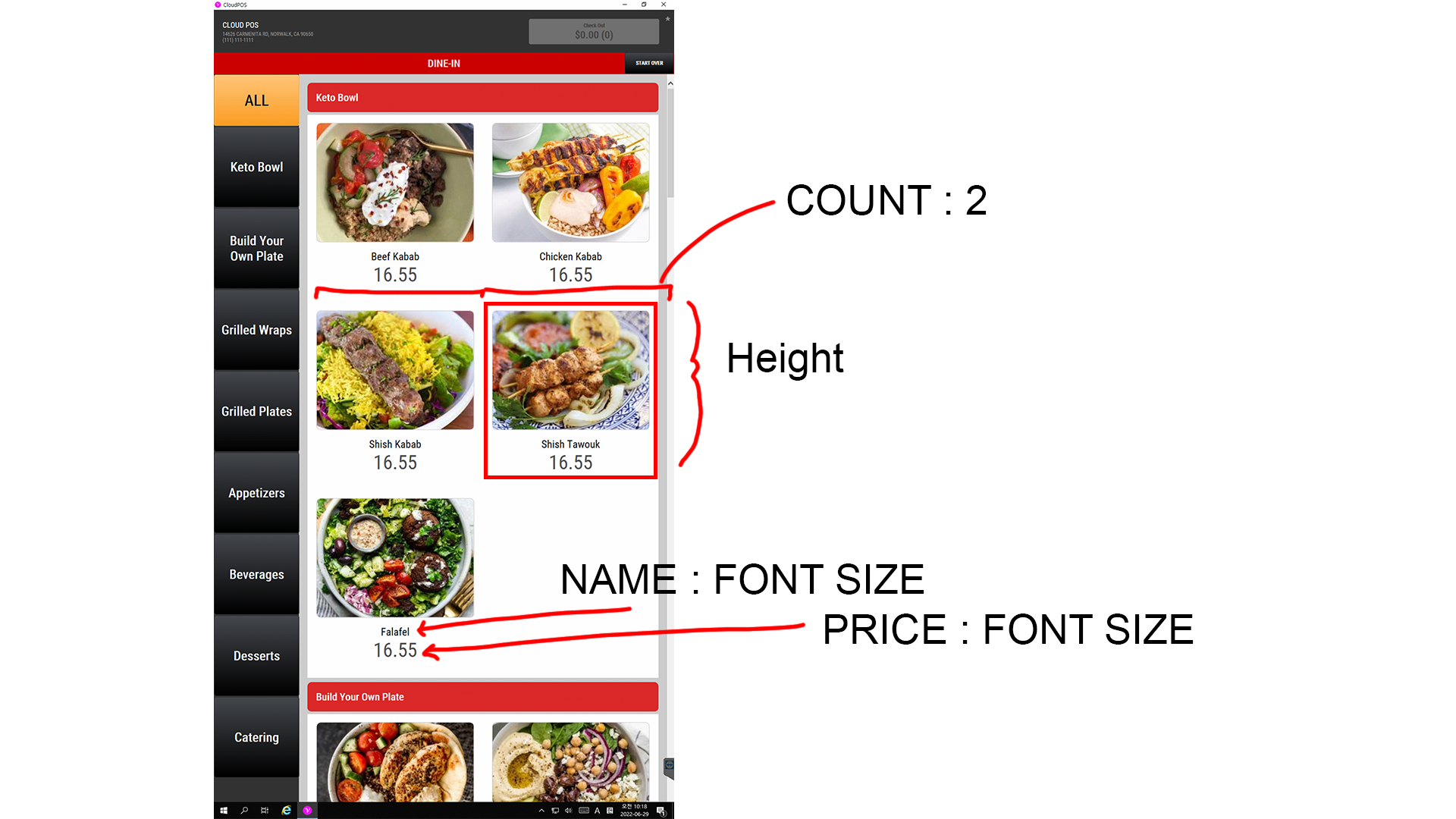

COUNT: This setting decides how many columns of items will be displayed

HEIGHT: Height of each item box(box area contains picture + Name & Price)

NAME - FONT SIZE: font size for name

PRICE - FONT SIZE: font size for price

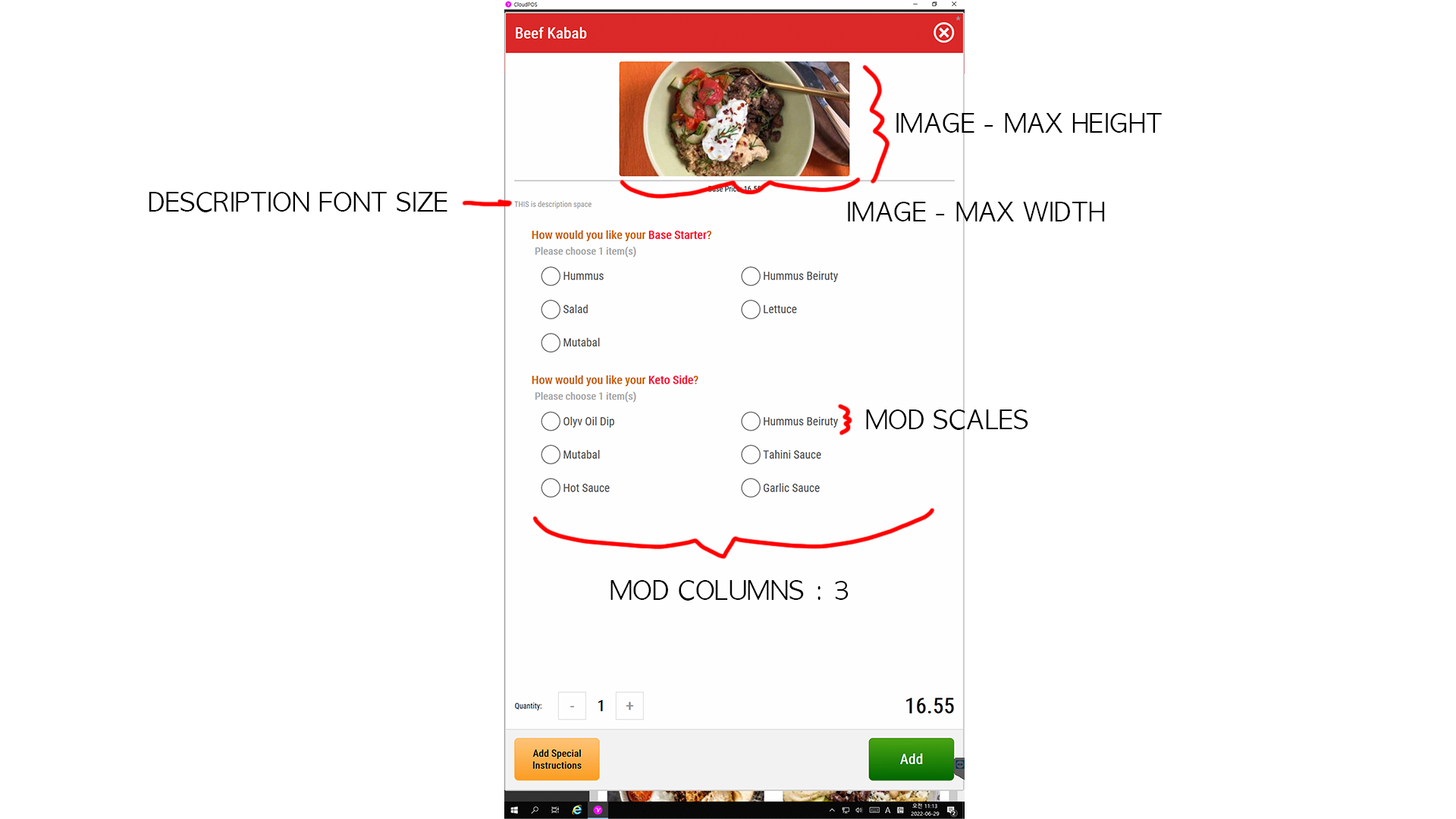

[MENU DETAIL VIEW]



IMAGE - MAX WIDTH: Sets Image max width

IMAGE - MAX HEIGHT: Sets Image max height



Image size will constrained by either max width or max height, whichever the lower one.



IMAGE BOX - WIDTH

IMAGE BOX - HEIGHT

DESCRIPTION FONT SIZE: Menu Description Font Size

MOD COLUMNS: Number of columns for modifier.

MOD SCALES: Modifier font size.





[CATEGORY]



LAYOUT: Where the category buttons will be.

ROWS: This setting applies only when category LAYOUT is top or bottom. Sets rows of category buttons.

BUTTON SIZE: Sets size of each category button when LAYOUT is top or bottom.

FONT SIZE: Sets font size of category within button.

VERTICAL WIDTH: Width of category box when category LAYOUT is LEFT.

COLOR: Sets the color of category button.

[NOTIFICATION]

NOTIFICATION :

[MESSAGES]

MAIN/DEFAULT:

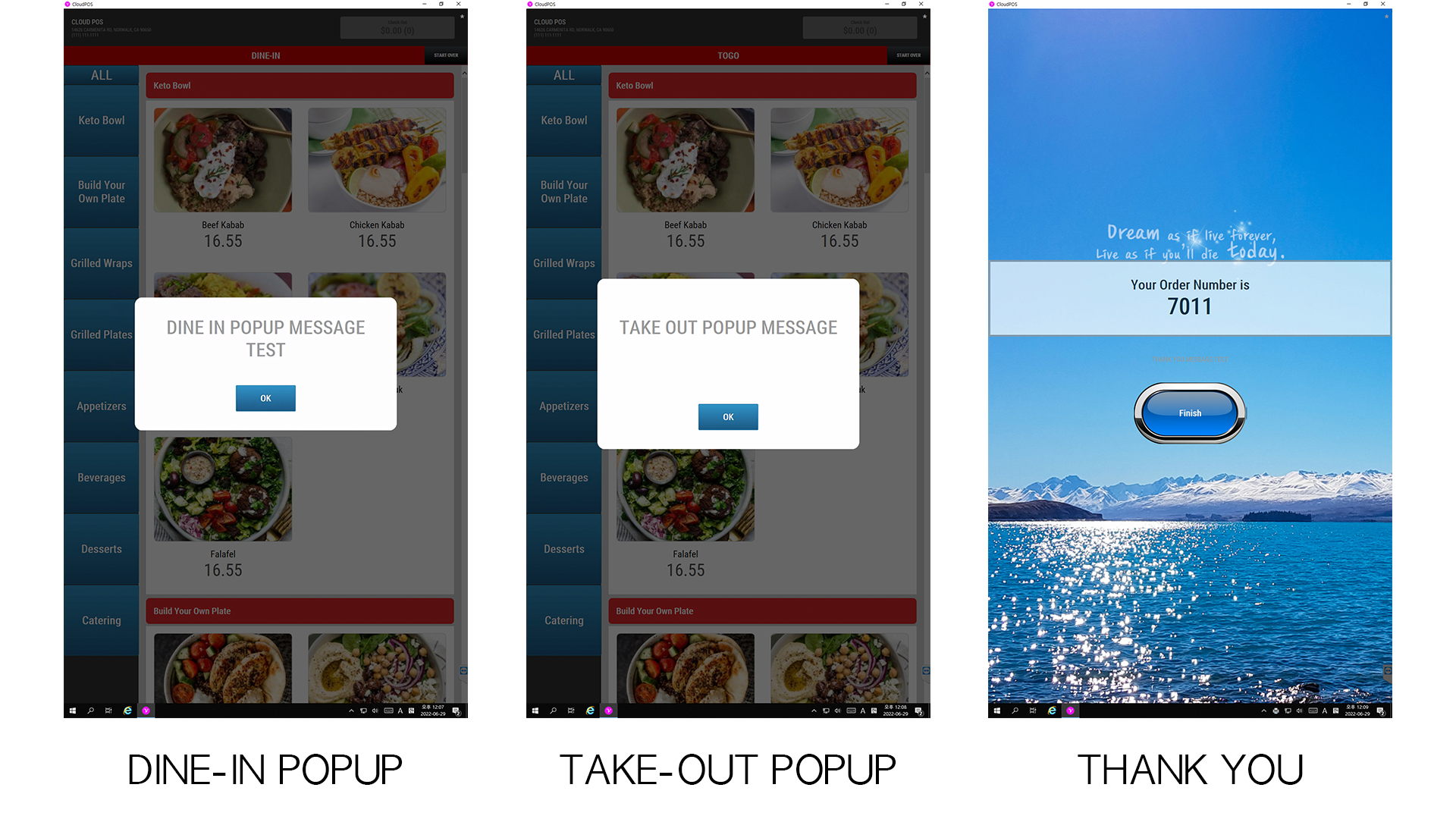

THANK YOU: popup message after payment completion.

TAKE-OUT POPUP: popup message when togo screen pops up.

DINE-IN POPUP: popup message when dine-in screen pops up.
